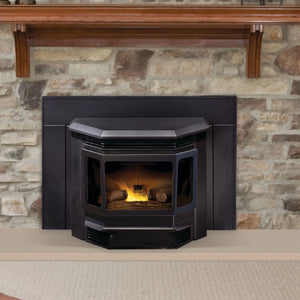

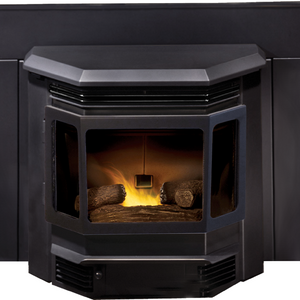

Quadra-Fire Classic Bay 1200 Pellet Insert
MSRP Starting At:
$3,978
The Classic Bay 1200i delivers stunning flames and impressive performance—always on display through its large bay window. Superior technology helps the 1200i produce powerful warmth, while remaining highly efficient.
- 48,500 BTUs — heats 1,000 to 2,600 square feet, based on climate and home efficiency
- EPA certified, with low emission levels of .8 grams per hour
- 75lb hopper capacity
- Patented feed system for jam-free operation
- Easy-clean firepot
CB1200I-C Insert
| Width: | 28-1/2" |
| Height: | 25-1/2" |
| Front Width Minimum Firebox Opening: | 29-3/4" |
| Height Minimum Firebox Opening: | 19-3/4" |
| Depth Minimum Firebox Opening: | 13-1/4" |
| Back Width Minimum Firebox Opening: | 22-1/2" |
| Extension Onto Hearth: | 13-5/8" |
| BTU/hr Input: | 17,000 - 48,500 |
| Heating Capacity: | 1,000 - 2,700 sq ft |
| Hopper Capacity: | 75 lbs |
| Viewing Area: | 153 sq in |
| Efficiency: | LHV 68%, HHV 64% |
| Emissions: | .8 grams/hour |
