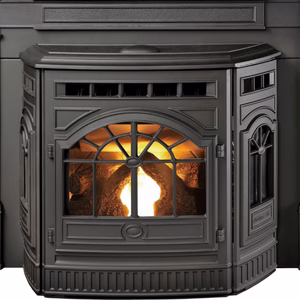

Quadra-Fire Castile Pellet Insert
MSRP Starting At:
$4,887
The beautiful Castile Pellet Insert delivers enough warmth to heat most living rooms, great rooms and family rooms. Even better, it’s efficient, self-lighting and easy-to-use. Define your favorite room; let the Castile provide the style and comfort.
- 30,600 BTUs — heats 700 to 1,800 square feet, based on climate and home efficiency
- EPA certified, with low emission levels of 1.1 grams per hour
- 45lb hopper capacity
- Patented feed system for jam-free operation
- Easy-clean firepot
Castile Insert
| Width: | 32-1/4" |
| Height: | 24-3/4" |
| Front Width Minimum Firebox Opening: | 28-1/8" |
| Height Minimum Firebox Opening: | 21-1/4" |
| Depth Minimum Firebox Opening: | 13-1/8" |
| Back Width Minimum Firebox Opening: | 23-5/8" |
| Extension Onto Hearth: | 10-3/8" |
| Fuel Type: | Pellet |
| BTU/hr Input: | 9,400 - 30,600 |
| Heating Capacity: | 700 - 1,900 sq ft |
| Hopper Capacity: | 45 lbs |
| Viewing Area: | 106 sq in |
| Efficiency: | LHV 70%, HHV 66% |
| Emissions: | 1.1 grams/hour |
CAD Drawings
Architect Guides
Installation Manuals
Install ManualInstall Manual (French Translation)
Product Brochures
BrochureWood Shelves Brochure
